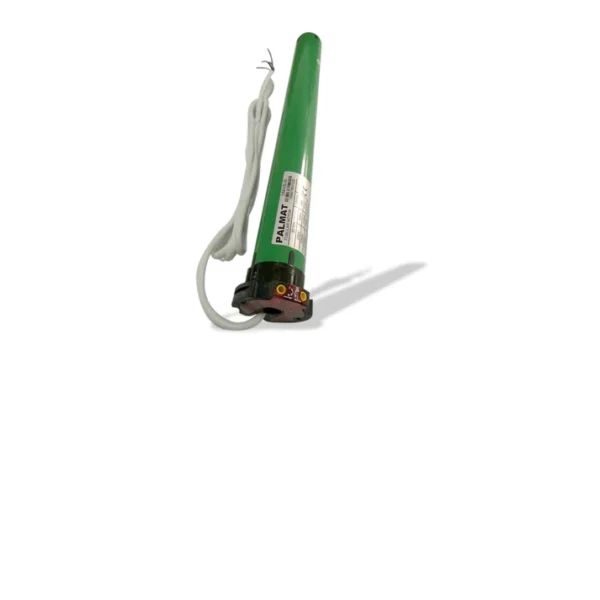

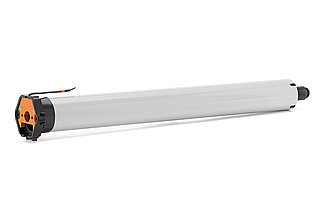

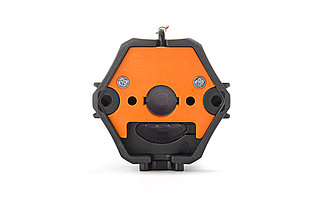

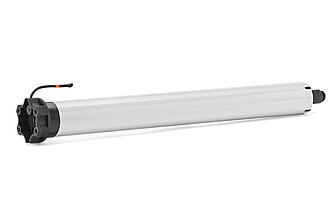

RolMotion M-868

Tubular motors The new super quiet radio tube drive for roller shutters with two selectable running modes: standard running or whispering mode, is suitable for shafts with a diameter of 50 mm or more, has a curtain protection and a noiseless soft brake.

Description

    • Smart force measurement                                                                                                                                                                                           Technical data
    • Two regulated speeds (standard running or whispering mode)
    • Long running time of 10 mins.
    • Blind protection up/down and free travel
    • Mechatronic end position recognition with Soft stop
    • End positions can be adjusted through the assembly cable or hand-held transmitter
    • Noiseless soft brake
    • Adjustable ventilation andintermediate positions
  • RolMotion M10-868

    10 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

  • RolMotion M10-868

    10 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

  • RolMotion M10-868

    10 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

  • RolMotion M20-868

    20 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

  • RolMotion M25-868

    25 Nm max. torque, 14 rpm speed (whisper mode: 5 rpm)

Features

Roller shutters
Electronic
50
Radio
